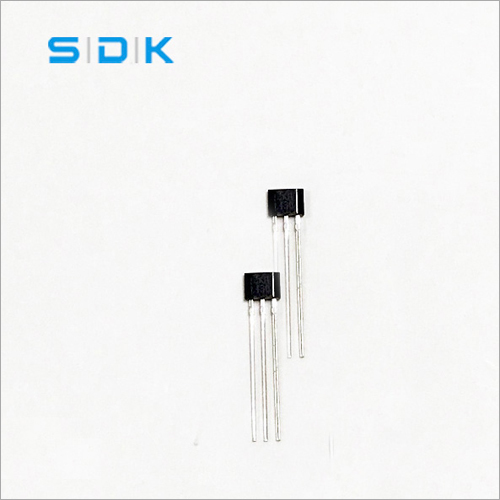

SH3503 Linear Hall Effect Sensor

Name: SH3503 Linear Hall Effect Sensor
Brand: Suzhou SDK Electronics Technology Co., Ltd.
Price: 0.15 USD
Availability: InStock

Price 0.15 USD ($)/ Piece

Get a Price/Quote

MOQ : 10000 Pieces

SH3503 Linear Hall Effect Sensor Specification

Power Source
DC supply

Components
Integral Hall IC, voltage regulator, output transistor

Power Supply
2.7V to 6.5V DC

Sensors Specification
Linear analog output, DC-coupled

Usage
Magnetic field detection, current sensing, position and proximity sensing

Response Time
Fast response (<3 s typical)

Features
Low power, high sensitivity, stable operation, lead-free/RoHS compliant

Input
Magnetic field

Resolution
High linearity, analog

Output
Analog voltage signal

Operating Temperature
-40C to +125C

Interface
3-pin SIP

Product Type
Linear Hall effect sensor

Application
Industrial automation, automotive, robotics

Rated Voltage
5V DC

Supply Voltage
2.7V - 6.5V DC

Size
TO-92S

Dimension (L*W*H)
4.00 mm x 3.00 mm x 4.50 mm

Function
Detects magnetic field strength and provides a linear analog output

Color
Black

Weight
~0.5 g

Thickness
Standard (approx. 0.5 mm package thickness)

Current Rating
8 mA typical

Frequency
Analog/continuous

Lead Pitch
2.54 mm

Output Type
Ratiometric analog

ESD Protection
6 kV (Human Body Model)

Linearity Error
<1% across full range

Environmental Compliance
RoHS, Lead-Free

Storage Temperature Range
-50°C to +150°C

Mounting Type
Through-hole

Quiescent Output Voltage
2.5V (typical at Vcc=5V)

Magnetic Sensitivity Range
1.0 mV/Gauss (typical)

Operating Supply Current
8 mA (typical, no load)

Package
TO-92S (straight leads)

Polarity
Sensitive to both north and south poles

SH3503 Linear Hall Effect Sensor Trade Information

Minimum Order Quantity
10000 Pieces

Supply Ability
10000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About SH3503 Linear Hall Effect Sensor

Trending in industrial automation and robotics, the SH3503 Linear Hall Effect Sensor is a top-drawer component for precise magnetic field detection. Its redoubtable sensitivity (1.0 mV/Gauss, typical) and classic ratiometric analog output empower reliable current, position, and proximity sensing. With steadfast dual-pole polarity response, robust ESD protection (6 kV), and lead-free construction, it delivers stable and accurate performance. Access next-level circuit flexibility via its miniature TO-92S package, high linearity (<1% error), and fast responseideal for designers seeking smart, energy-efficient solutions.

Versatile Applications & Exceptional Features

The SH3503 Sensor excels in motor control, magnetic code reading, vibration sensing, and liquid level detection. Its special features include low power operation, stable output, and high sensitivity to both north and south poles. The classic, robust design makes it reliable for current and weight sensing in ferrous metal detection and other industrial contexts. Integral Hall IC and voltage regulation ensure consistent performance even within demanding temperature extremes, making the SH3503 adaptable across broad application areas.

FOB Port, Market Reach, and Shipment Details

SH3503 sensors are efficiently dispatched from major FOB ports in China, with fast shipment options available. These sensors suit both domestic and export markets, especially automotive and industrial sectors. Packaging is tailored for safe, moisture-free transport and includes anti-static wrapping to protect components from ESD during shipment. Bulk packaging options support large-scale deployments, ensuring reliable delivery to distributors, manufacturers, and traders globally.

Product Detical Description
SDK Part No	SH3503
Product Description	Linear Hall Effect Sensor
Typical Application	Miniature Construction Power Consumption of 3.5mA at VCC=5V for Energy Efficiency Single Current Sourcing Output Linear Output for Circuit Design Flexibility Low Noise Output Virtually Eliminates the Need for Filtering A Stable and Accurate Output Responds to Either Positive or Negative Gauss
Benefit Applications	Current Sensing Motor Control Position Sensing Magnetic Code Reading Ferrous Metal Detector Vibration Sensing Liquid Level Sensing Weight Sensing

Technical details

Product Detical Description
SDK Part No	SH3503
Product Description	Linear Hall Effect Sensor
Typical Application	Miniature Construction Power Consumption of 3.5mA at VCC=5V for Energy Efficiency Single Current Sourcing Output Linear Output for Circuit Design Flexibility Low Noise Output Virtually Eliminates the Need for Filtering A Stable and Accurate Output Temperature Range of -40deg to 85deg Responds to Either Positive or Negative Gauss
Benefit Applications	Current Sensing Motor Control Position Sensing Magnetic Code Reading Ferrous Metal Detector Vibration Sensing Liquid Level Sensing Weight Sensing

FAQs of SH3503 Linear Hall Effect Sensor:

Q: How does the SH3503 Linear Hall Effect Sensor operate?

A: The SH3503 detects magnetic field strength and generates a linear analog voltage output, responding to both north and south polarity. Its ratiometric signal varies proportionally with magnetic field intensity, making it suitable for continuous, analog monitoring and precise sensing tasks.

Q: What are the main usage areas for the SH3503 sensor?

A: The SH3503 is widely applied in magnetic field detection, current sensing, position and proximity measurements, motor control, vibration sensing, liquid level detection, and ferrous metal identification. It integrates seamlessly into industrial automation, automotive systems, and robotics.

Q: Where is the SH3503 most commonly dispatched from and delivered to?

A: SH3503 is shipped from FOB ports in China, and is distributed to domestic markets and international customers, particularly manufacturers, suppliers, and traders in the industrial, automotive, and robotics sectors.

Q: What special features distinguish the SH3503 sensor?

A: Key features include high sensitivity, rapid response time (<3 s typical), low power consumption, ratiometric analog output, robust ESD protection (6 kV), stable operation, lead-free RoHS compliance, and versatility in detecting both magnetic poles.

Q: How is the SH3503 packaged for shipment and what is the process?

A: The sensors are packaged with anti-static, moisture-resistant materials ensuring protection against environmental hazards and ESD. Orders are dispatched promptly, with options for bulk packaging for manufacturers or customized packages for smaller orders.

Q: When and why should you choose SH3503 for your sensing requirements?

A: Choose SH3503 when your application demands high linearity, reliable analog output, dual-pole sensitivity, compact size, and compliance with environmental regulations. It is especially suitable for environments requiring fast, accurate response and robust operational stability.
